Gas/Oil Pipe Leakage monitoring

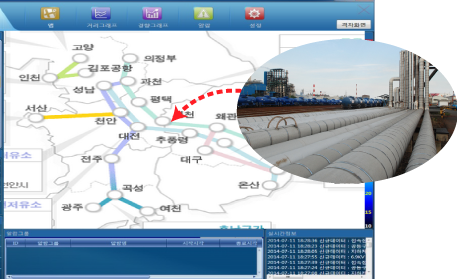

Gas/Oil Pipe Leakage monitoring - Sample capture
【Figure: Gas/Oil Pipe Leakage monitoring - Sample capture】

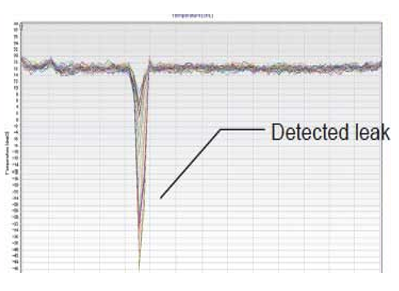

Temperature changes in the gas leak
【Figure: Temperature changes in the gas leak】
Pipe Line is a major facility to transfer large amounts of energy.
Especially in the event of leakage from the physical effects of the defect or damage to property outside of the Pipe is of course a fire can lead to large disasters.
If leakage occurs, the temperature is going down significantly, DTS can easily identify leakage locations.
Thousands ~ tens of thousands point of temperature in real time in the unit of 1 ~ 2m Point can determine the temperature distribution over the entire area.

We used the DTS DMS system is based on a lot of field experience with software development, system installation and support from the whole process to operate.
In particular, user-friendly 3D screen and easy-to-use interface to provide the best solution as it detects an abnormal position, as well as allows users to operate easily and fix the problem.
Also excellent compatibility to enable Multi Vendor DTS Interface, and also designed to be easily linked to other systems.

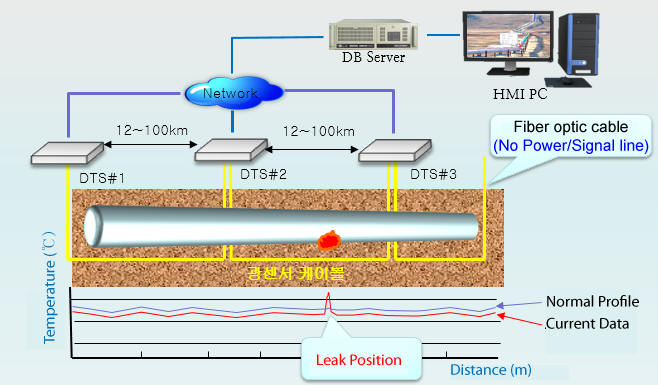

 System layout
【Figure : System layout】
- DTS : a fiber optic temperature measurement data (Max: 50Km)
- Sensor : optical fiber
- Server : Temperature Data collection and generate alarm information
- HMI : Monitoring station


 System Features
Leakage monitoring optical sensor pipe oil, LNG, substance in liquid form, such as hot water is by detecting changes in the distribution of temperature change when finely leak / leaks in the pipe to ensure a wide range of pipe monitoring performance.
- Long-distance surveillance : Monitor over the 50Km facility. (1m units)
- Easy-Map : The location of the alarm points are shown in the drawings
- Easy-Analyzing : Temperature history, temperature compared with other facilities
- Easy-Maintenance : Use semi-permanent if there is no damage to the fiber optic cable
